Wood Grain

This material has groups so currently cannot be forked or edited

Rating:

Author: David

Download .blend File

Description Material ID: 127

Improved wood grain texture

Wood

Comments

3 years ago Alice: pretty good

You must login to post comments.

Blender Import Code

import bpy
import tempfile
import os
import requests

def get_by_identifier(objs, identifier):
    for x in objs:
        if x.identifier == identifier:
            return x
    for x in objs:
        if x.name == identifier:
            return x

mat = bpy.data.materials.new(name="Wood Grain")
mat.use_nodes = True
mat["shadercloud_id"] = 127
if "Cube" in bpy.data.objects:
  bpy.data.objects["Cube"].active_material = mat
elif bpy.context.object:
  bpy.context.object.active_material = mat
mat.node_tree.nodes.remove(mat.node_tree.nodes[1])
mat.node_tree.nodes.remove(mat.node_tree.nodes[0])
group_128 = bpy.data.node_groups.new("NodeGroup.001", "ShaderNodeTree");
shader_726 = group_128.nodes.new("ShaderNodeTexVoronoi")
shader_726.select = True
group_128.nodes.active = shader_726
get_by_identifier(shader_726.inputs, "Scale").default_value = 15.5
shader_727 = group_128.nodes.new("ShaderNodeTexMusgrave")
shader_727.select = True
get_by_identifier(shader_727.inputs, "Scale").default_value = 0.7
get_by_identifier(shader_727.inputs, "Detail").default_value = 1
get_by_identifier(shader_727.inputs, "Dimension").default_value = 0
get_by_identifier(shader_727.inputs, "Lacunarity").default_value = 0
get_by_identifier(shader_727.inputs, "Gain").default_value = 0
shader_728 = group_128.nodes.new("ShaderNodeTexNoise")
shader_728.select = True
get_by_identifier(shader_728.inputs, "Scale").default_value = 0.5
get_by_identifier(shader_728.inputs, "Detail").default_value = 16
group_128.inputs.new("NodeSocketColor", "Base Color")
group_128.inputs.new("NodeSocketColor", "Subsurface Color")
group_128.inputs.new("NodeSocketFloat", "Scale")
group_128.inputs.new("NodeSocketFloat", "Scale")
shader_729 = group_128.nodes.new("NodeGroupInput")
shader_729.select = True
group_128.outputs.new("NodeSocketShader", "BSDF")
group_128.outputs.new("NodeSocketColor", "Displacement")
shader_730 = group_128.nodes.new("NodeGroupOutput")
shader_730.select = True
shader_730.inputs[1].default_value = (0,0,0,0)
shader_731 = group_128.nodes.new("ShaderNodeMath")
shader_731.select = True
shader_731.operation = "MULTIPLY"
shader_731.inputs[2].default_value = 0
shader_732 = group_128.nodes.new("ShaderNodeBsdfPrincipled")
shader_732.select = True
get_by_identifier(shader_732.inputs, "Base Color").default_value = (0.423268,0.212231,0.116971,1)
get_by_identifier(shader_732.inputs, "Subsurface").default_value = 0.477273
get_by_identifier(shader_732.inputs, "Subsurface Color").default_value = (0.423268,0.270498,0.144129,1)
get_by_identifier(shader_732.inputs, "Specular").default_value = 1
get_by_identifier(shader_732.inputs, "Specular Tint").default_value = 1
get_by_identifier(shader_732.inputs, "Roughness").default_value = 1
get_by_identifier(shader_732.inputs, "Sheen Tint").default_value = 0
get_by_identifier(shader_732.inputs, "Emission Strength").default_value = 1
get_by_identifier(shader_732.inputs, "Alpha").default_value = 1
shader_726.location = (-300,0)
group_128.links.new(get_by_identifier(shader_726.outputs, "Distance"), shader_731.inputs[0])
group_128.links.new(get_by_identifier(shader_726.outputs, "Distance"), shader_731.inputs[1])
shader_727.location = (-600,0)
group_128.links.new(get_by_identifier(shader_727.outputs, "Fac"), get_by_identifier(shader_726.inputs, "Vector"))
shader_728.location = (-900,0)
group_128.links.new(get_by_identifier(shader_728.outputs, "Color"), shader_730.inputs[1])
shader_729.location = (-1200,0)
group_128.links.new(shader_729.outputs[0], get_by_identifier(shader_732.inputs, "Base Color"))
group_128.links.new(shader_729.outputs[1], get_by_identifier(shader_732.inputs, "Subsurface Color"))
group_128.links.new(shader_729.outputs[2], get_by_identifier(shader_727.inputs, "Scale"))
group_128.links.new(shader_729.outputs[3], get_by_identifier(shader_726.inputs, "Scale"))
shader_731.location = (-1500,0)
group_128.links.new(get_by_identifier(shader_731.outputs, "Value"), get_by_identifier(shader_732.inputs, "Metallic"))
shader_732.location = (-1800,0)
group_128.links.new(get_by_identifier(shader_732.outputs, "BSDF"), shader_730.inputs[0])
shader_733 = mat.node_tree.nodes.new("ShaderNodeDisplacement")
shader_733.select = True
mat.node_tree.nodes.active = shader_733
get_by_identifier(shader_733.inputs, "Midlevel").default_value = 0
get_by_identifier(shader_733.inputs, "Scale").default_value = 0.1
shader_734 = mat.node_tree.nodes.new("ShaderNodeOutputMaterial")
shader_734.select = True
shader_735 = mat.node_tree.nodes.new("ShaderNodeGroup")
shader_735.select = True
shader_735.node_tree = group_128
shader_735.inputs[0].default_value = (0.126327,0.0660299,0.0380771,1)
shader_735.inputs[1].default_value = (0.553519,0.307687,0.131131,1)
shader_735.inputs[2].default_value = 1
shader_735.inputs[3].default_value = 35
shader_733.location = (-300,0)
mat.node_tree.links.new(get_by_identifier(shader_733.outputs, "Displacement"), get_by_identifier(shader_734.inputs, "Displacement"))
shader_735.location = (-600,0)
mat.node_tree.links.new(get_by_identifier(shader_735.outputs, "BSDF"), get_by_identifier(shader_734.inputs, "Surface"))
mat.node_tree.links.new(get_by_identifier(shader_735.outputs, "Displacement"), get_by_identifier(shader_733.inputs, "Height"))

You can import this material by running this code in your script window.

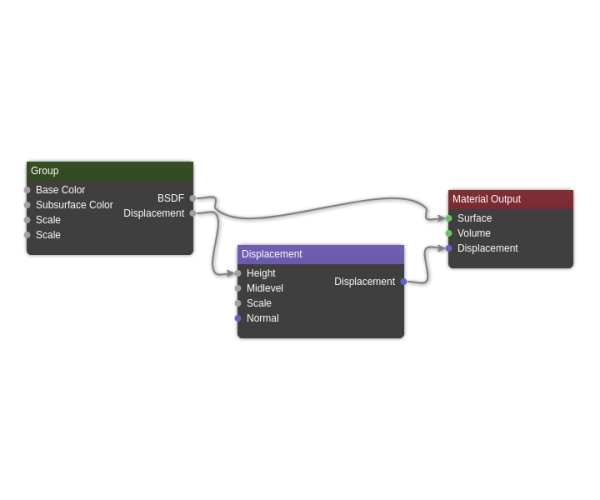

Node Diagram Preview 3 Nodes
